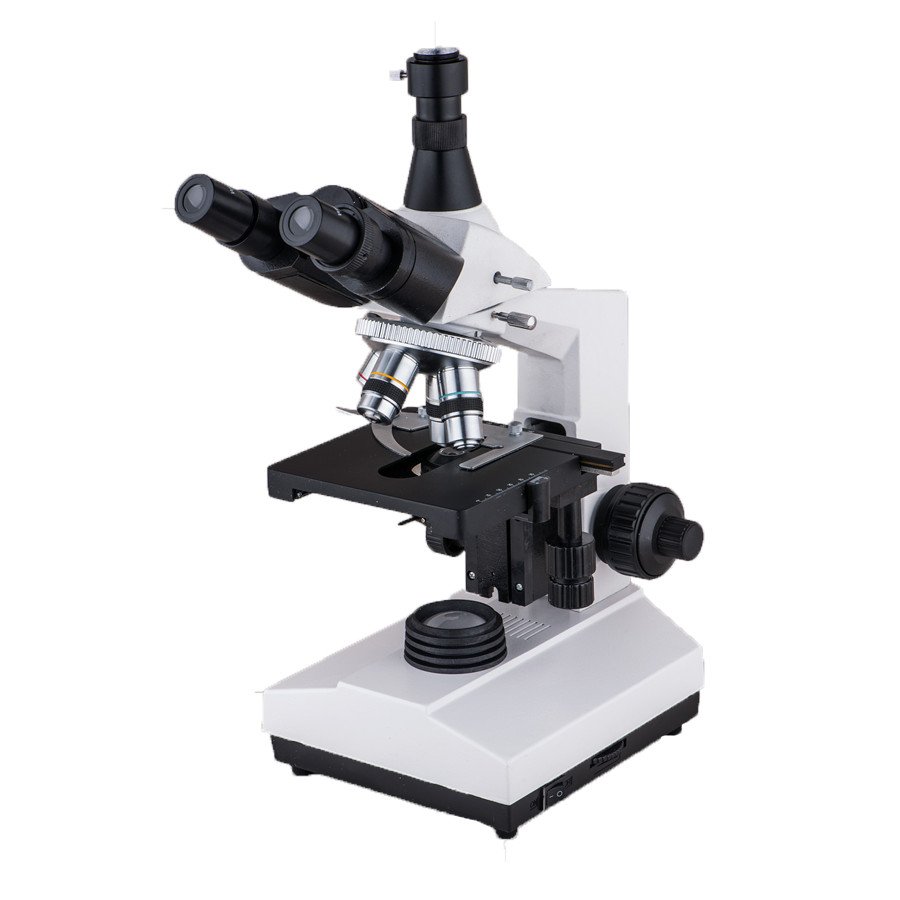

XSZ–107SM 1000x biological trinocular microscope

Description

XSZ–107SM 1000x biological trinocular microscope is made in China. Suitable for biological medical labs.

Features:

1. 1000x magnification，1600x optional;
2. Objective lens 4x 10x 40x (s) 100x (s oil);
3.  Eyepiece WF10x 18mm;
4. 6v 20W halogen lamp (LED lamp optional)

Specifications:

Achromatic objective	4X, 10X, 40X (spring), 100X (spring, oil)
Eyepiece	Large field of view eyepiece: WF10X (WF 16X optional)
Observation head	Trinocular head
Platform	Double-layer movable platform; size 140X140mm, moving range 75X45mm
Focusing	Coaxial coarse and fine adjustment, focusing range 30mm, fine adjustment scale value 0.002mm
Condenser	NA=1.25 Abbe condenser with variable diaphragm and color filter
Lighting system	220V/6V 20W or 110V/6V 20W halogen lamp (optional for LED lamp)
