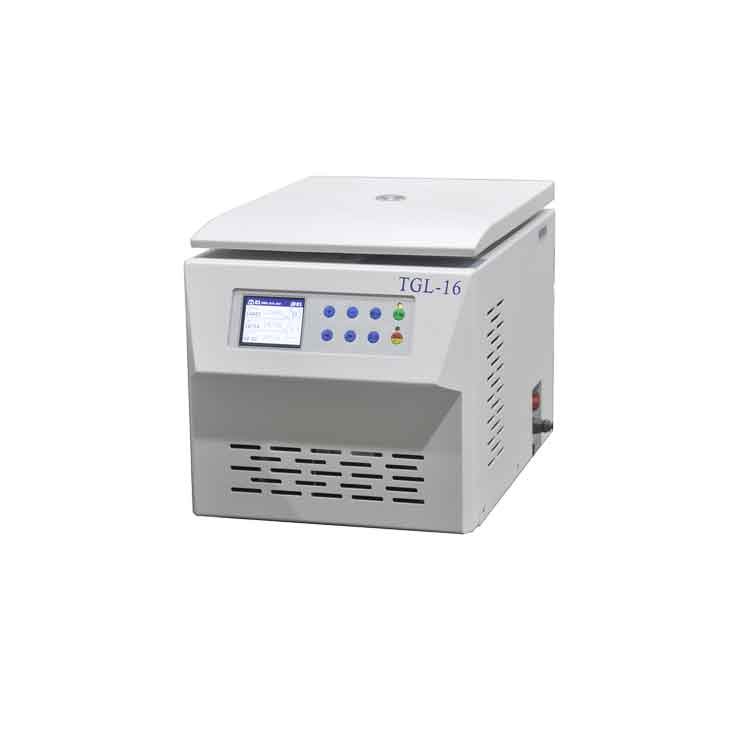

TGL 16 high speed refrigerated microcentrifuge
Description
Features：
① Smart Control System
- Managed by a smart computer system with an energy-saving motor.
- Plus, it runs very quietly—under 55 dB even at top speed.
② Performance Specs
- You can choose from 10 speed settings for smooth starts/stops. Meanwhile, anti-vibration tech keeps things steady.
- It reaches full speed (16,000 RPM) in just 13 seconds. Better yet, speed stays consistent, with less than 2% variation.
Advanced Display & Monitoring
- An 8-inch color screen shows two things at once: your settings and live updates.
- For safety, it checks if samples are balanced before starting, so you never overload it.
Precision Cooling
- Uses eco-friendly R-404A coolant (no ozone harm). What’s more, temperatures stay stable within ±0.5°C.
Safety Features
- Three key safeguards: 1) Stops if it spins too fast, 2) Shuts off if it overheats, 3) Locks the door during runs.
- Finally, it meets strict global safety standards (ISO 9001/13485).
Technical Parameter：
| Model | TGL-16 | Timing range | 1s-99min59s |
| Maximum speed | 16000r/min | Power supply | AC 220V 50Hz 10A |
| Maximum RCF | 21532×g | Machine noise | ≤55dB(A) |
| Maximum capacity | 60ml | Power | 700W |
| Speed Accuracy | ±10r/min | Dimensions | 295×400×360 mm |
| Temperature range | -20℃~+40℃ | Packing Dimensions | 480×370×410 mm |
| Temperature accuracy | ±1℃ | Net Weight | 36kg |
TGL 16 Centrifuge matched rotors:
| Rotor type | No. | Capacity | Max Speed（r/min） | Max RCF(×g) |
|---|---|---|---|---|
| Main machine | TGL-16 | 16000 | 21532 | |

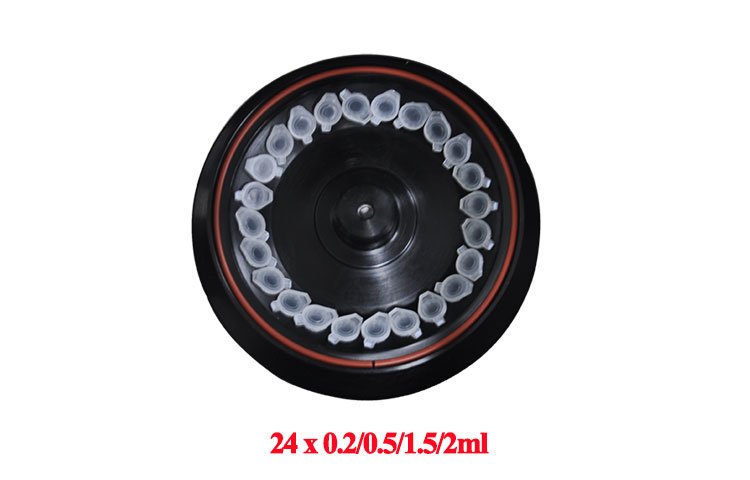

| Angle rotor | NO.1 | 24×1.5/2.2ml | 15000 | 21532 |
| Angle rotor | NO.2 | 12×1.5/2.2ml | 16000 | 17800 |
| Angle rotor | NO.3 | 18×5ml | 12000 | 10142 |
| Angle rotor | NO.4 | 4×8×0.2ml PCR tubes | 15000 | 13800 |
