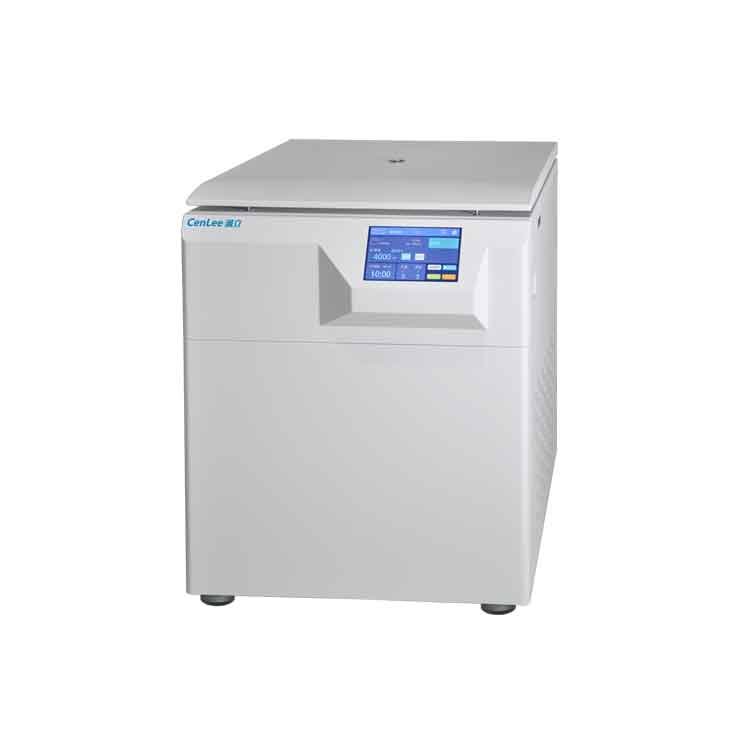

DL5M 4x750ml floor centrifuge
DL5M 4x750ml floor centrifuge features a max capacity 3000ml.
Description
DL5M 4x750ml floor centrifuge is popular in industries such as radiation immunity, biochemistry, and pharmaceuticals.
Technical Parameter:
| Model | DL5M | Temperature accuracy | ±1℃ |
| Maximum speed | 6000r/min | Timing range | 1min-99h59min |
| Maximum RCF | 5120×g | Power supply | AC 220V 50Hz 15A |
| Maximum capacity | 3000ml | Power | 1700W |
| Speed accuracy | ±10 r/min | Machine noise | ≤60dB(A) |
| Temperature range | -20℃~+40℃ | Dimensions | 620×740×810 mm |
| Net weight | 150kg | Packing dimensions | 680×780×1000 mm |
Matched rotors for DL5M 4x750ml floor centrifuge:
| Rotor type | Rotor No. | Capacity | Max speed (r/min) | Max RCF(×g) |
|---|---|---|---|---|
| Main machine | DL5M | 6000 | 5120 | |
| Angle rotor | NO.1 | 12×15ml | 6000 | 5120 |
| Swing rotor | NO.2 | 4×500ml | 4000 | 3040 |
| Micro plate rotor | NO.2 | 4×2×96 well | 4000 | 3040 |
| Swing bucket | NO.2 | Four buckets | 4000 | 3040 |
| Swing round bucket | NO.2 | 4×500ml | 4000 | 3040 |
| Swing bucket | NO.2 | 4×24×5ml (vacuum tube) | 4000 | 3040 |
| Swing bucket | NO.2 | 4×37×7ml (RIA) | 4000 | 3040 |
| Micro plate rotor | NO.3 | 2×2×96 well | 4000 | 2200 |

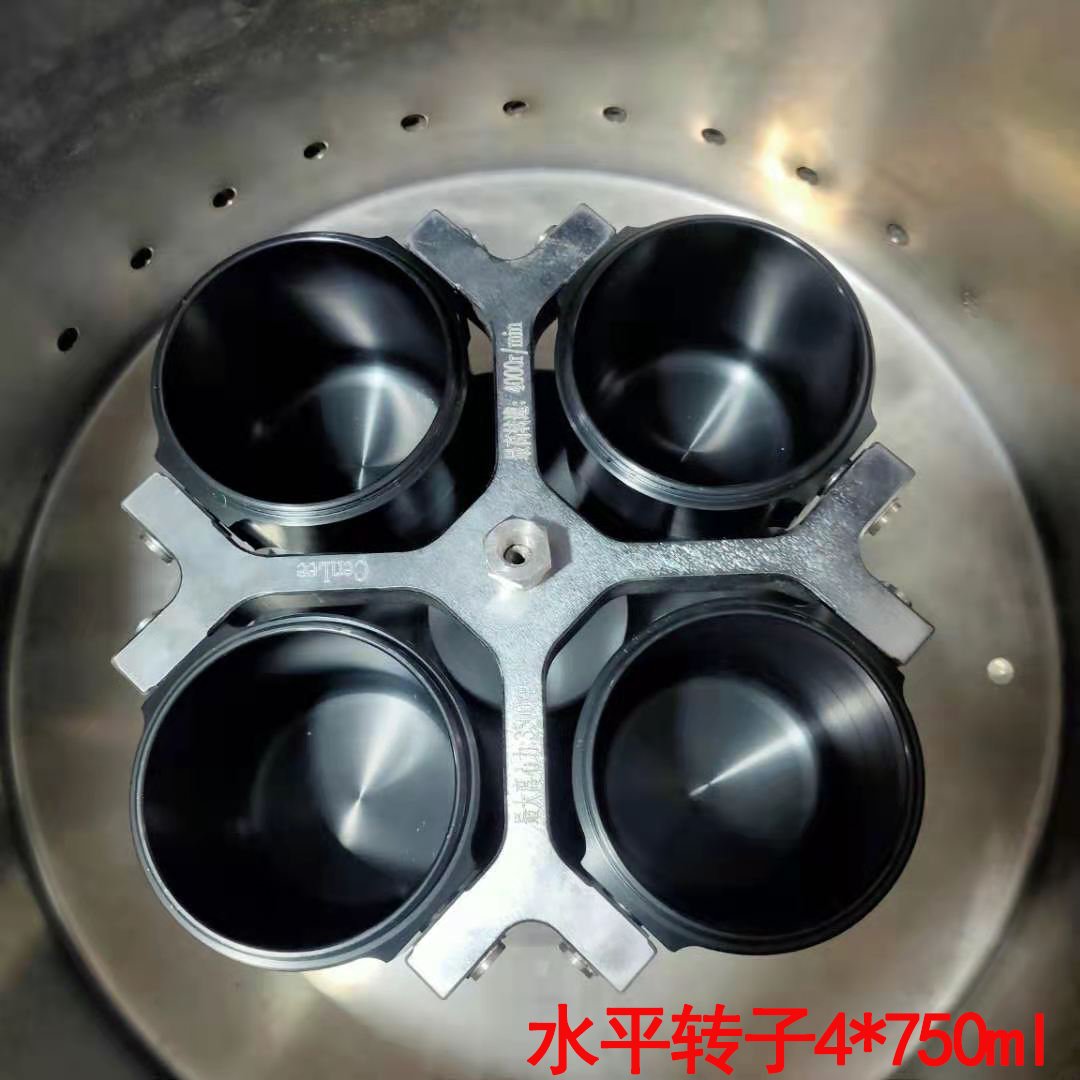

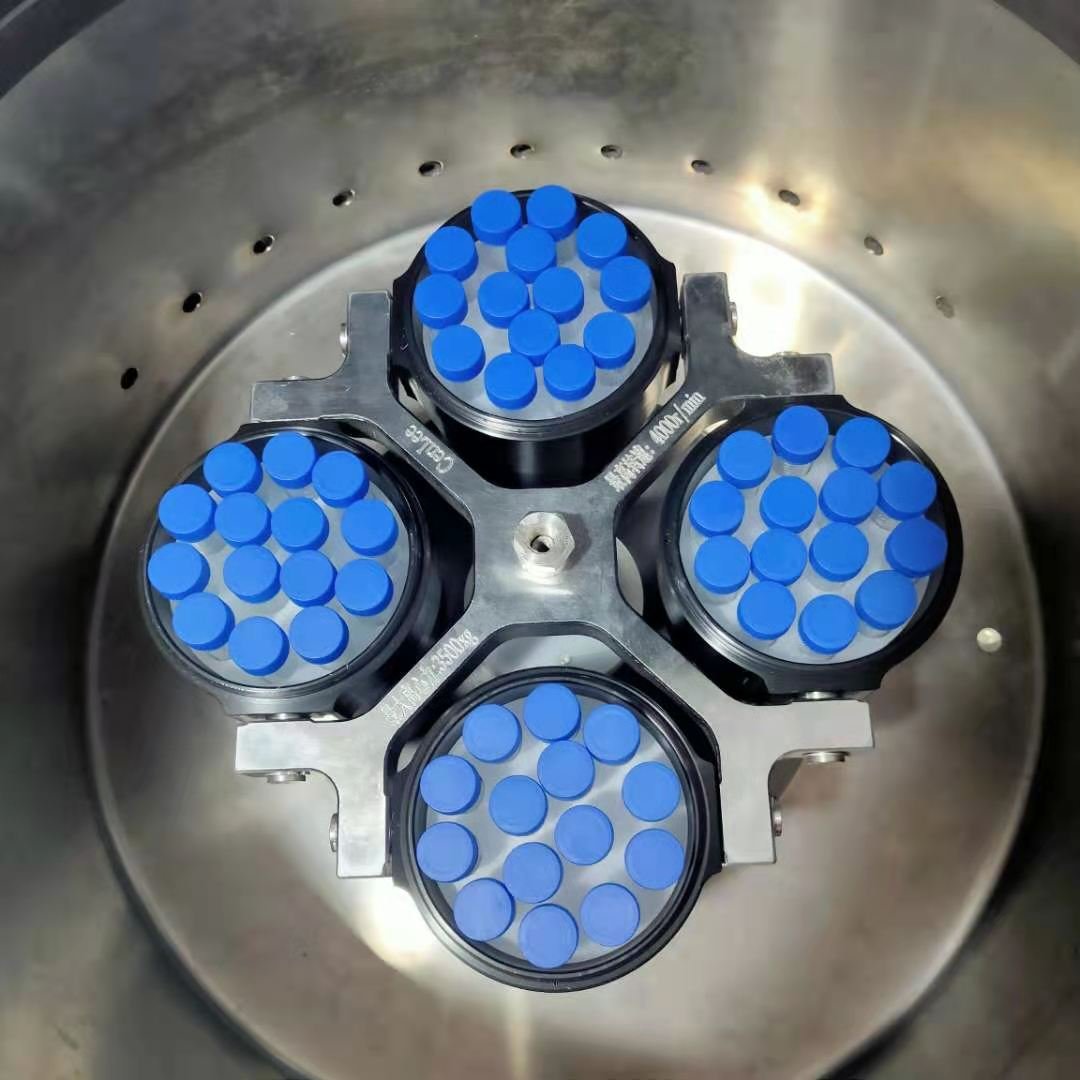

| Swing out round bucket | NO.4 | 4×750ml | 4000 | 3500 |
| Swing out round bucket | NO.5 | 6×250ml | 4000 | 3580 |
| Swing out round bucket | NO.6 | 4×250ml | 4200 | 3500 |
