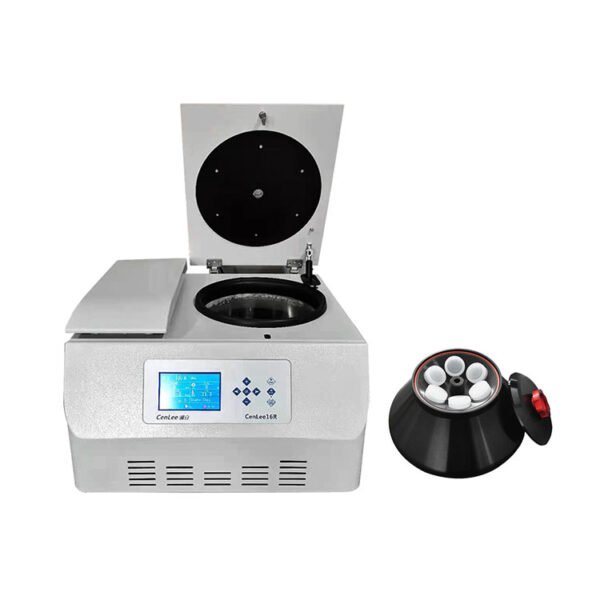

CenLee 16R high speed refrigerated centrifuge
CenLee 16R high speed refrigerated centrifuge enables the separation of diverse biological materials, including cells, proteins, bacteria, and viruses etc.
Description
CenLee 16R high speed refrigerated centrifuge enables the separation and purification of diverse biological materials, including cells, proteins, blood, bodily fluids, DNA/RNA, plasmids, bacteria, and viruses.
Features:
- Smart Temperature Control with Rapid Cooling
Our system uses an adaptive PID algorithm and a seamless evaporator design to maintain precise temperatures and deliver fast, energy-efficient cooling performance. - Precision Speed Regulation
Advanced speed control technology ensures consistent and accurate experimental results by maintaining exact operational speeds.
Technical Parameter:
| Model | CenLee16R | Timing range | 1s-99h59min59s |
| Maximum speed | 16600r/min | Power supply | AC 220V 50Hz 10A |
| Maximum RCF | 21532×g | Machine noise | ≤55dB(A) |
| Maximum capacity | 600ml（6x100ml） | Power | 1200W |
| Sample range | 0.5ml-100ml | Acc/Dec fastest time | 25~30s |
| Speed Accuracy | ±10r/min | Dimensions | 550×530×360mm |
| Temperature range | -20℃~+40℃ | Packing Dimensions | 620×590×420mm |
| Temperature accuracy | ±1℃ | Net Weight | 68kg |
CenLee 16R high speed refrigerated centrifuge matched rotors:
| Rotor type | No. | Capacity | Max Speed（r/min） | Max RCF(×g) |
|---|---|---|---|---|
| Main machine | CenLee16R | 16600 | 21532 | |
| Angle rotor | NO.1 | 12×1.5/2.2ml | 16600 | 19200 |
| Angle rotor | NO.2 | 12×5ml | 15000 | 16099 |
| Angle rotor | NO.3 | 12×10ml | 13000 | 16249 |

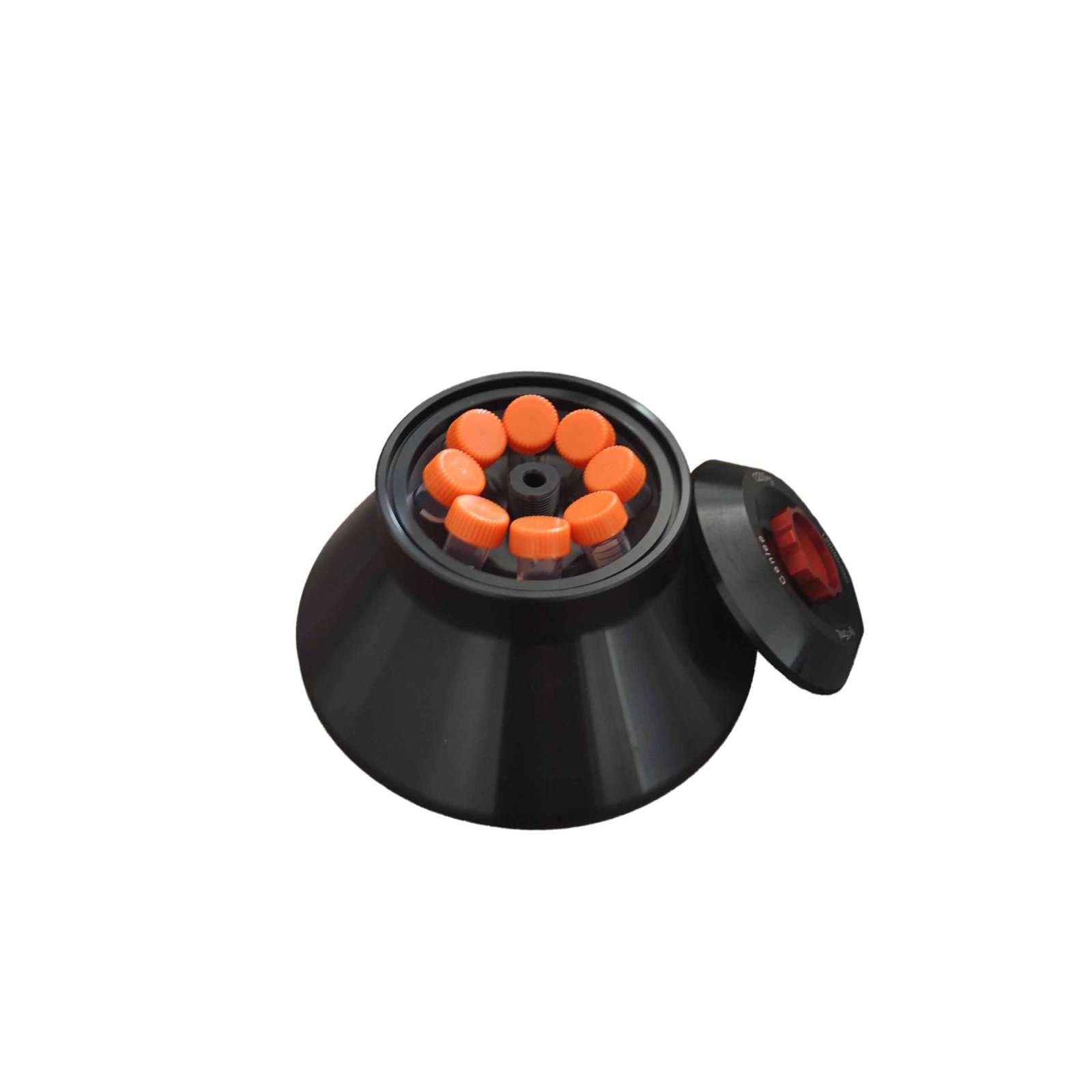

| Angle rotor | NO.4 | 8×15ml(conical) | 11000 | 12580 |
| Angle rotor | NO.5 | 8×20ml | 13000 | 17194 |
| Angle rotor | NO.6 | 6×50ml | 11000 | 13122 |

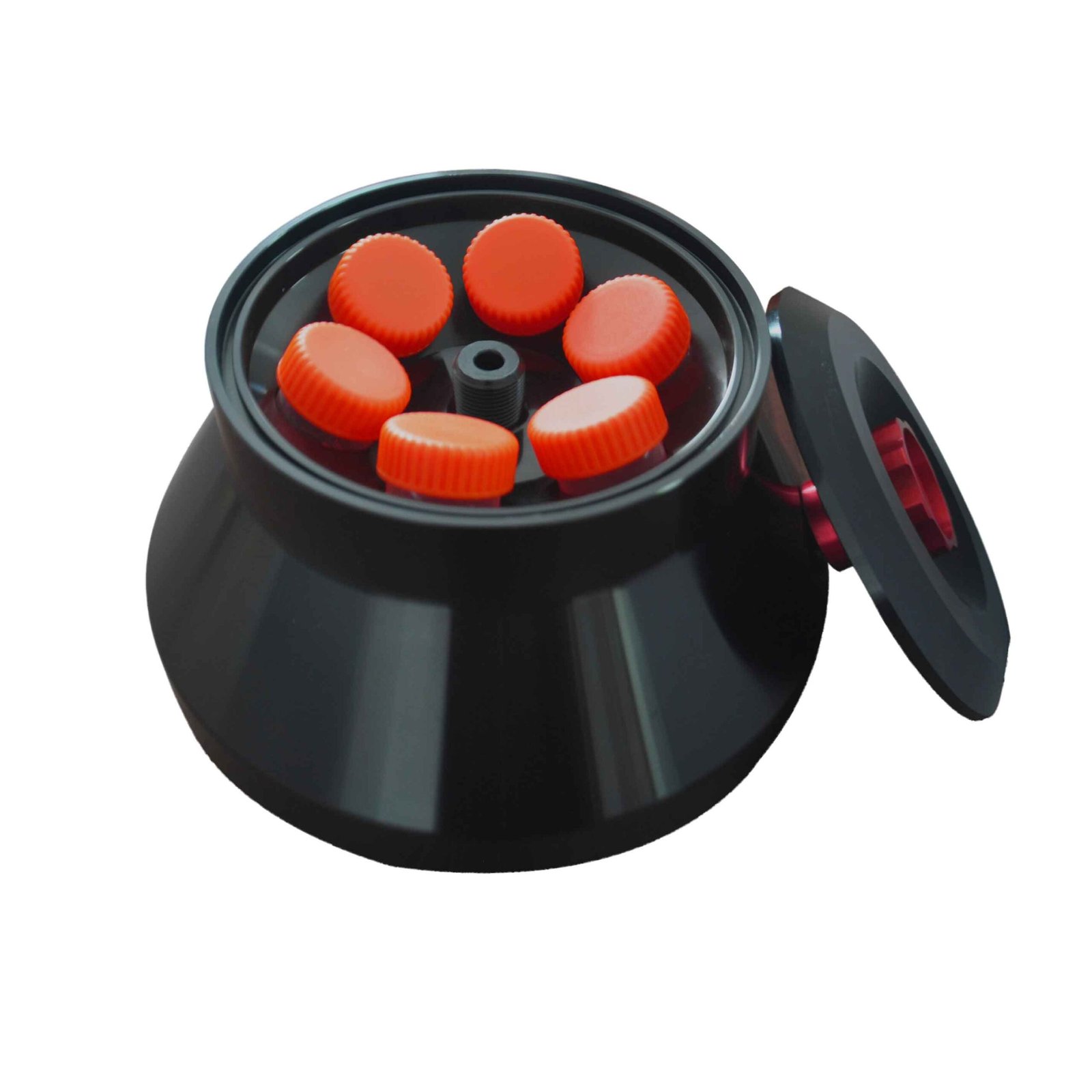

| Angle rotor | NO.6 | 6×50ml(conical) | 11000 | 13122 |

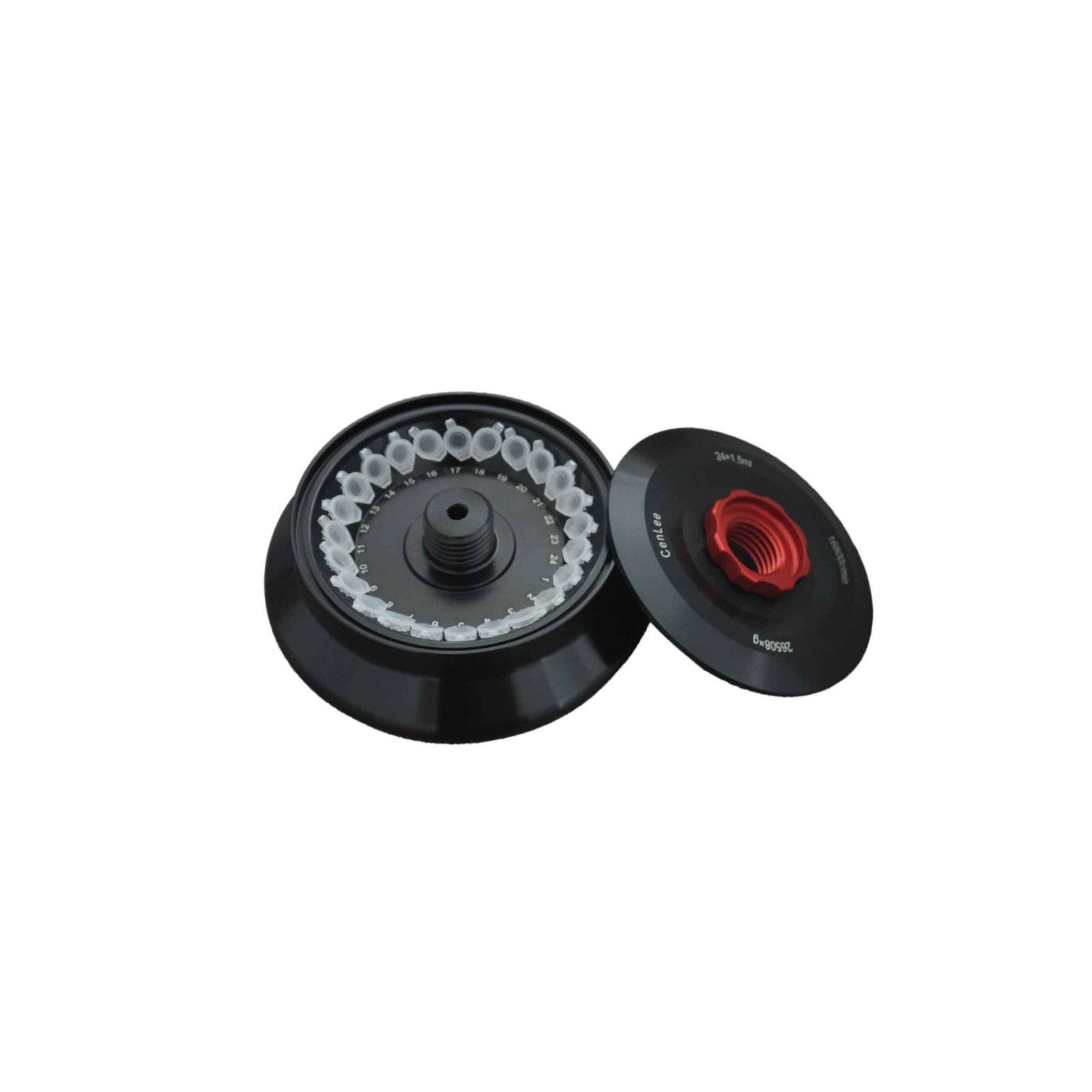

| Angle rotor | NO.7 | 24×1.5/2.2ml | 15000 | 21532 |

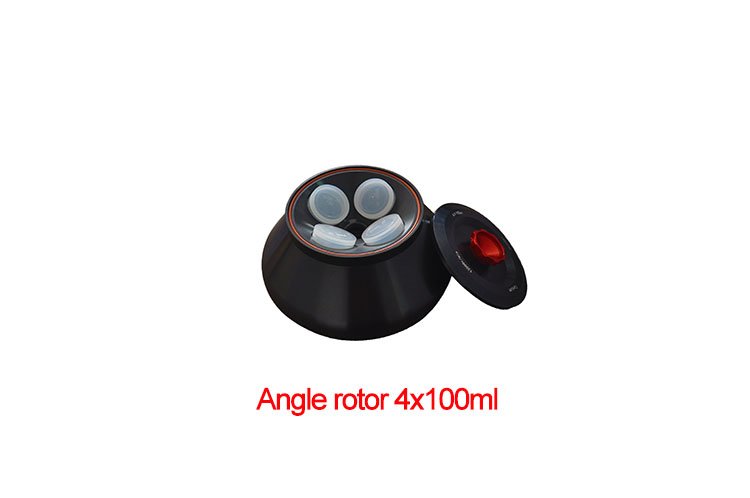

| Angle rotor | NO.8 | 4×100ml | 10000 | 10845 |
| Angle rotor | NO.9 | 48×0.5ml | 12000 | 12650 |
| Angle rotor | NO.10 | 6×100ml | 10000 | 11404 |
| Angle rotor | NO.11 | 48×1.5/2.2ml | 12000 | 15280 |
