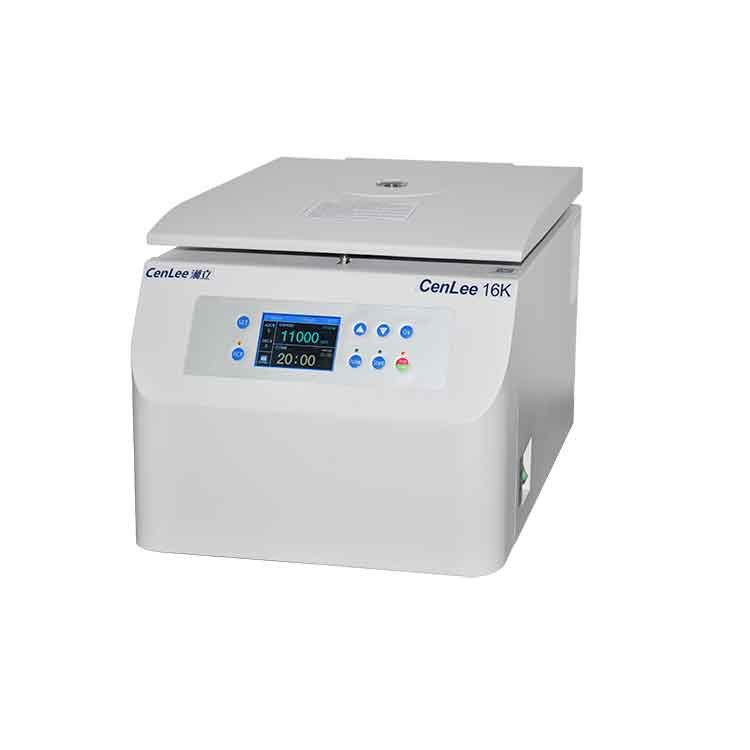

CenLee 16K high speed benchtop centrifuge machine 16000 rpm

Description

Features:

Program Customization & Performance

• User-defined protocols: Multiple programmable settings can be stored for repeat workflows.
• Precision ramp control: 9 adjustable acceleration levels and 10 deceleration gradients optimize sample separation efficiency.

Integrated Safety Architecture
The high-speed centrifuge incorporates:
① Overspeed protection: Automatic shutdown upon RPM threshold breaches
② Thermal motor monitoring: Real-time detection of overheating risks
③ Fail-safe door mechanism: Electromagnetic lid lock prevents operation unless fully sealed

Drive System Specifications

• Brushless DC motor:
  ▶ Zero carbon brush wear (maintenance-free operation)
  ▶ Contamination-resistant design for sensitive applications
  ▶ ±1% speed stability across all RPM ranges

Technical Parameter

Model	CenLee 16K	Power supply	AC 220V 50Hz 10A
Maximum speed	16600r/min	Machine noise	≤55dB(A)
Maximum RCF	21532×g	Power	400W
Maximum capacity	400ml	Chamber diameter	Φ280
Speed Accuracy	±10r/min	Acc/Dec fastest time	25~30s
Timing range	1min-99min	Dimensions	360×470×320 mm
Net Weight	28kg	Packing Dimensions	420×530×400 mm

CenLee16K Matched Rotor

Rotor type	No.	Capacity	Max Speed（r/min）	Max RCF(×g)
Main machine	CenLee16K		16600	21532
Angle rotor	NO.1	12×1.5/2ml	16600	19200
Angle rotor	NO.2	12×5ml	15000	16099
Angle rotor	NO.3	12×10ml	13000	16249

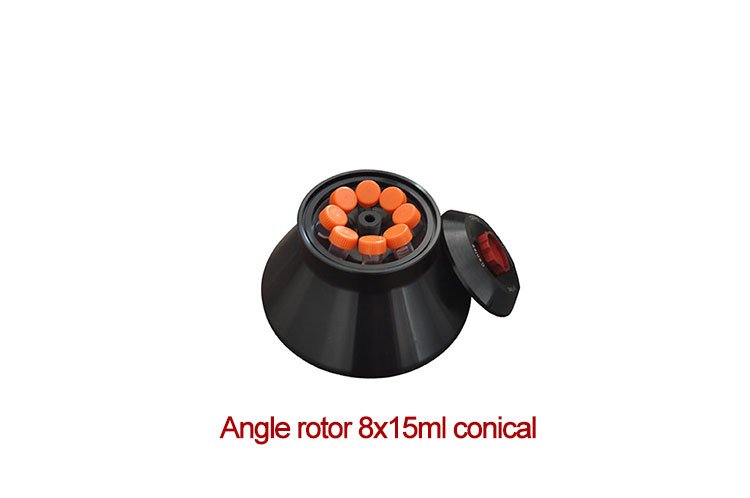

Angle rotor	NO.4	8×15ml (conical)	11000	12580
Angle rotor	NO.5	8×20ml	13000	17194
Angle rotor	NO.6	6×50ml	11000	13122

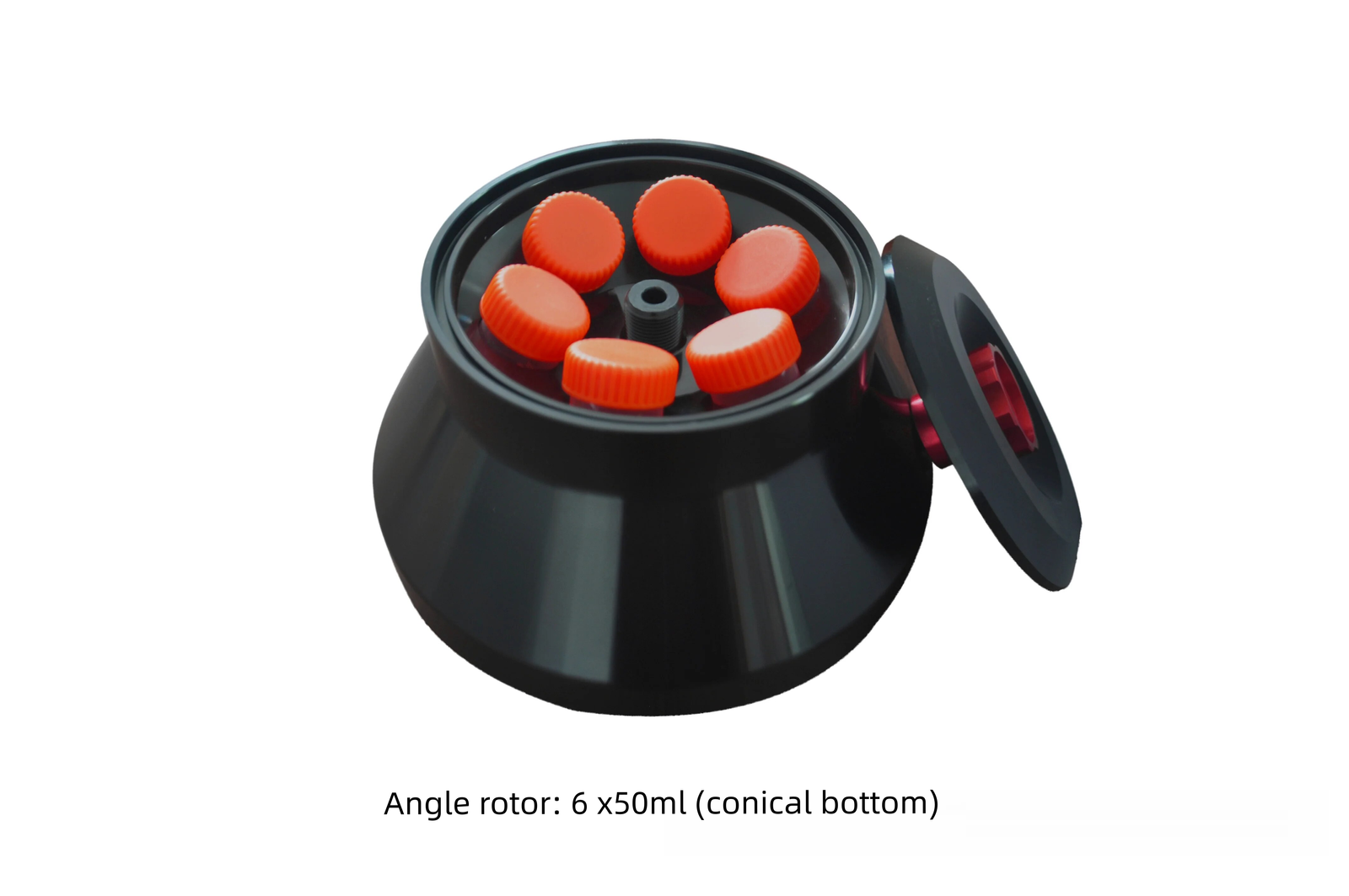

Angle rotor	NO.7	6×50ml (conical)	11000	13122

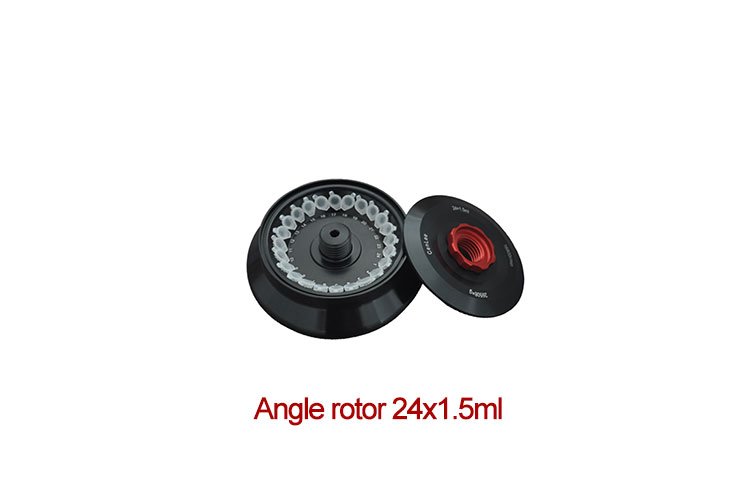

Angle rotor	NO.8	24×1.5/2.2ml	15000	21532
Angle rotor	NO.9	4×100ml	10000	10845
Angle rotor	NO.10	48×0.5ml	12000	12650
Micro Plate rotor	NO.11	2×2×48 well	3000	1400
Angle rotor	NO.12	48×1.5/2ml	12000	15280
